Featuring a two-axis concave pedal body, fully useable pedal platform and a pin system for fine tuning grip levels, the Revo-F offers unrivalled on-trail performance.
The Revo-F spins on an extra wide Igus bush and three cartridge bearings, with the internals fully sealed from the elements. Patent pending internals allow easy home maintenance, using standard tools.

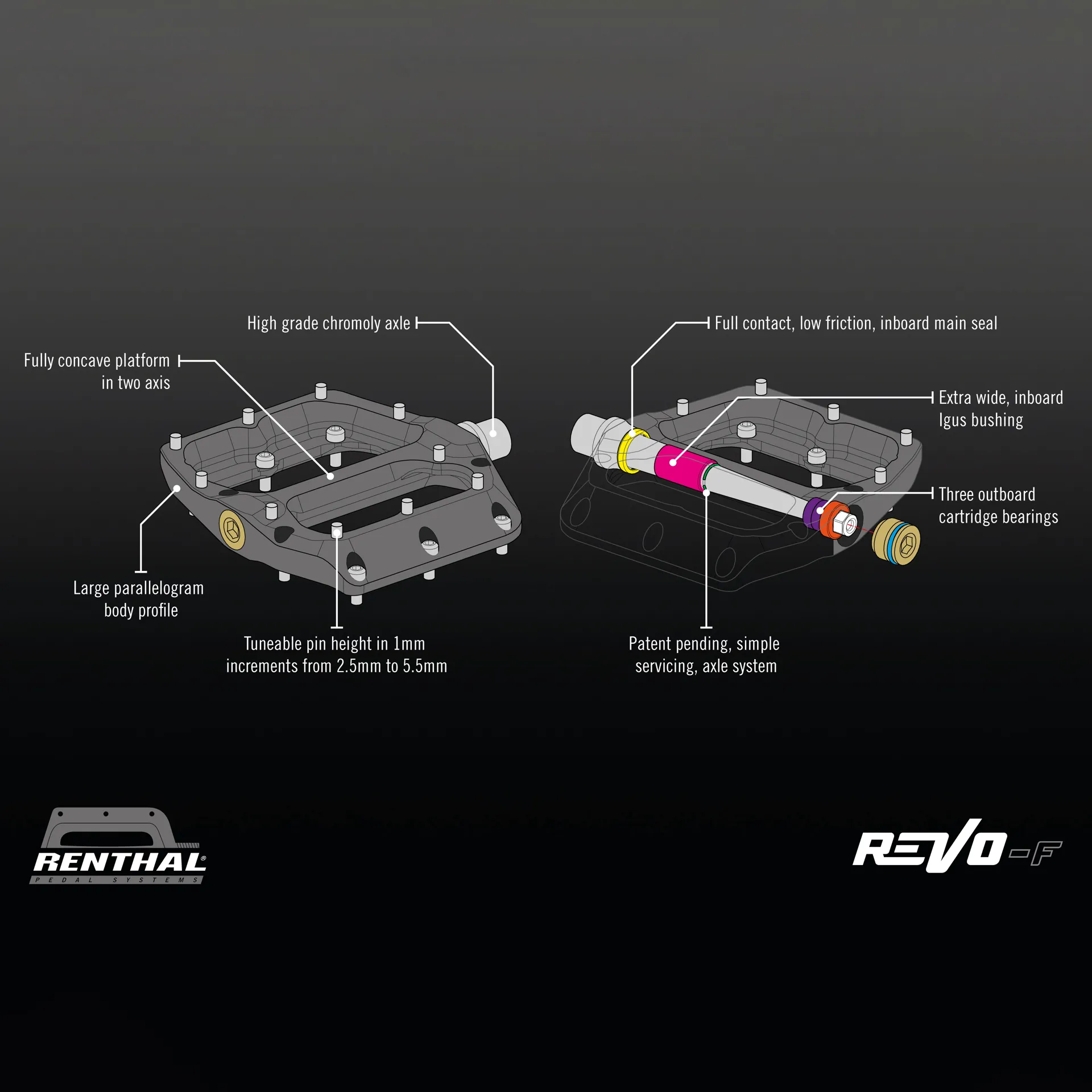

The Renthal Revo-F is packed with unique features to deliver the ultimate Ride-Tuned on trail performance, tuneable grip levels, ease of maintenance and bomb-proof durability.

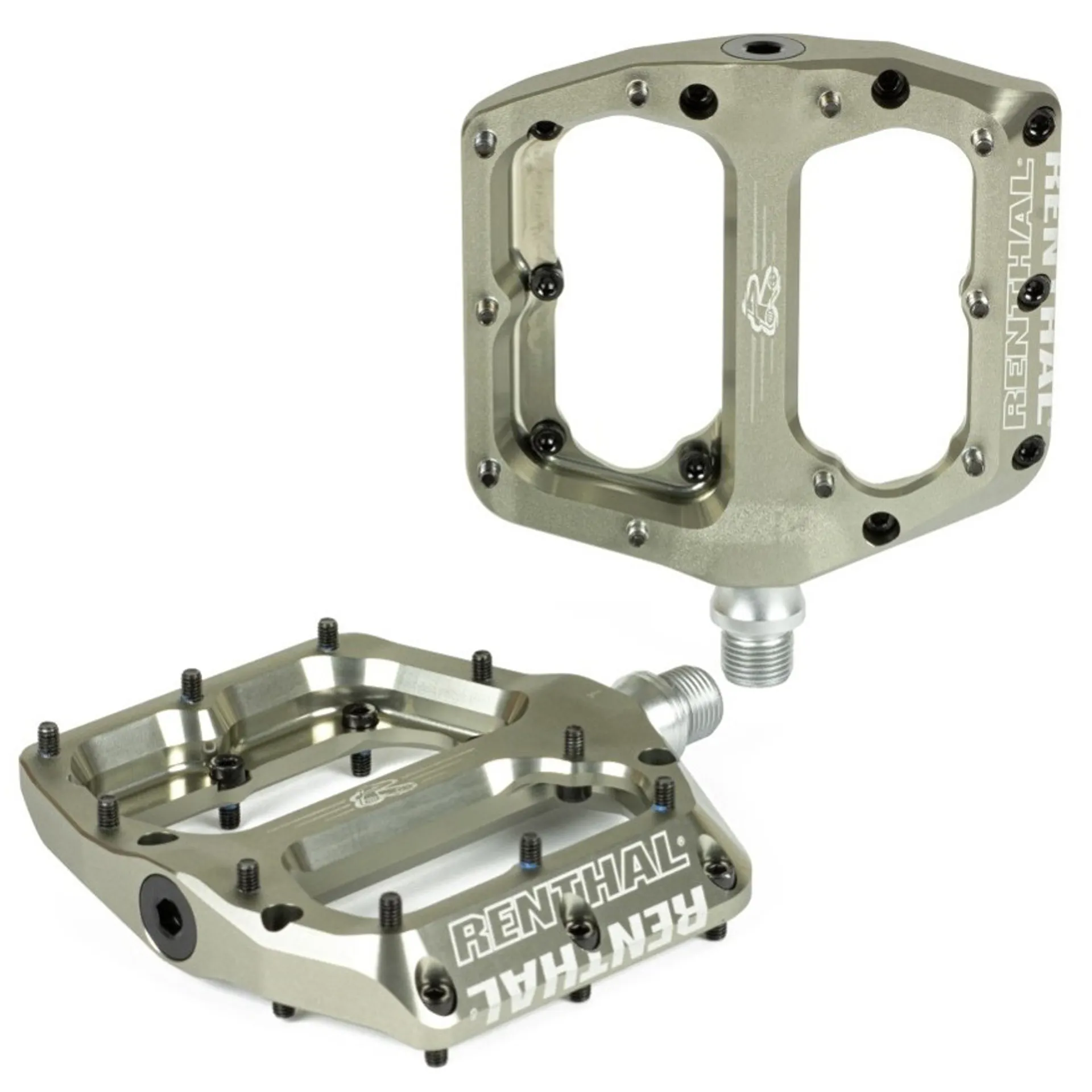

The main body of the Revo-F is made from forged 6061 aluminium. The pedal is then fully CNC machined, to remove as much material as possible. To improve rock strike performance, the front face of the pedal has been kept smooth, without any cut-outs. This allows the pedal to slide over rocks, rather than grabbing them.

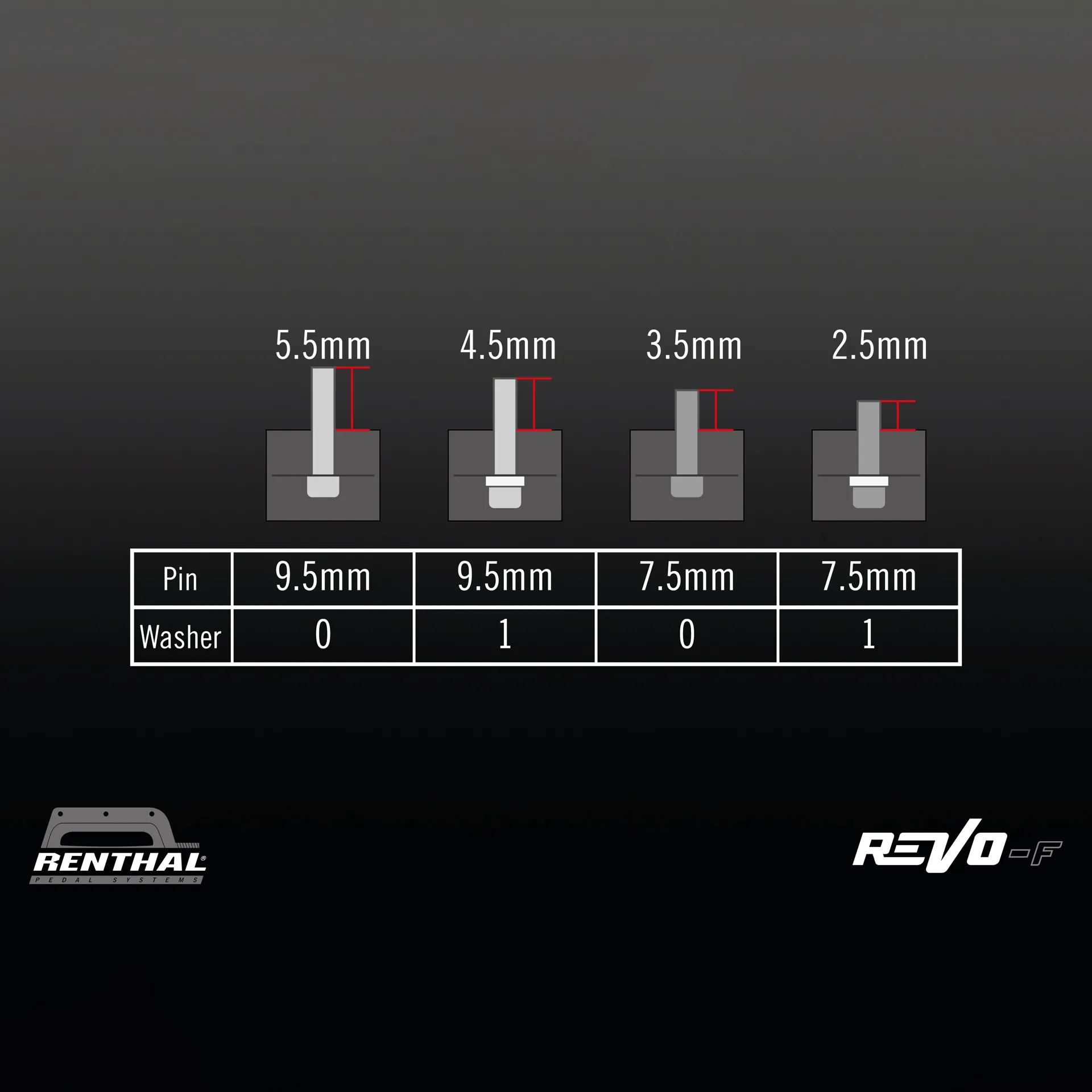

Revo-F pedals come factory-fitted with ten 5.5mm height pins per side. Supplied with the pedals are a further forty pins and forty washers. Using a combination of these, the pin height can be adjusted from 5.5mm to either 4.5mm, 3.5mm or 2.5mm, making them one of the most tuneable pedals available. Additionally, all the pins are screw-through type, so can be easily removed if damaged through impact.

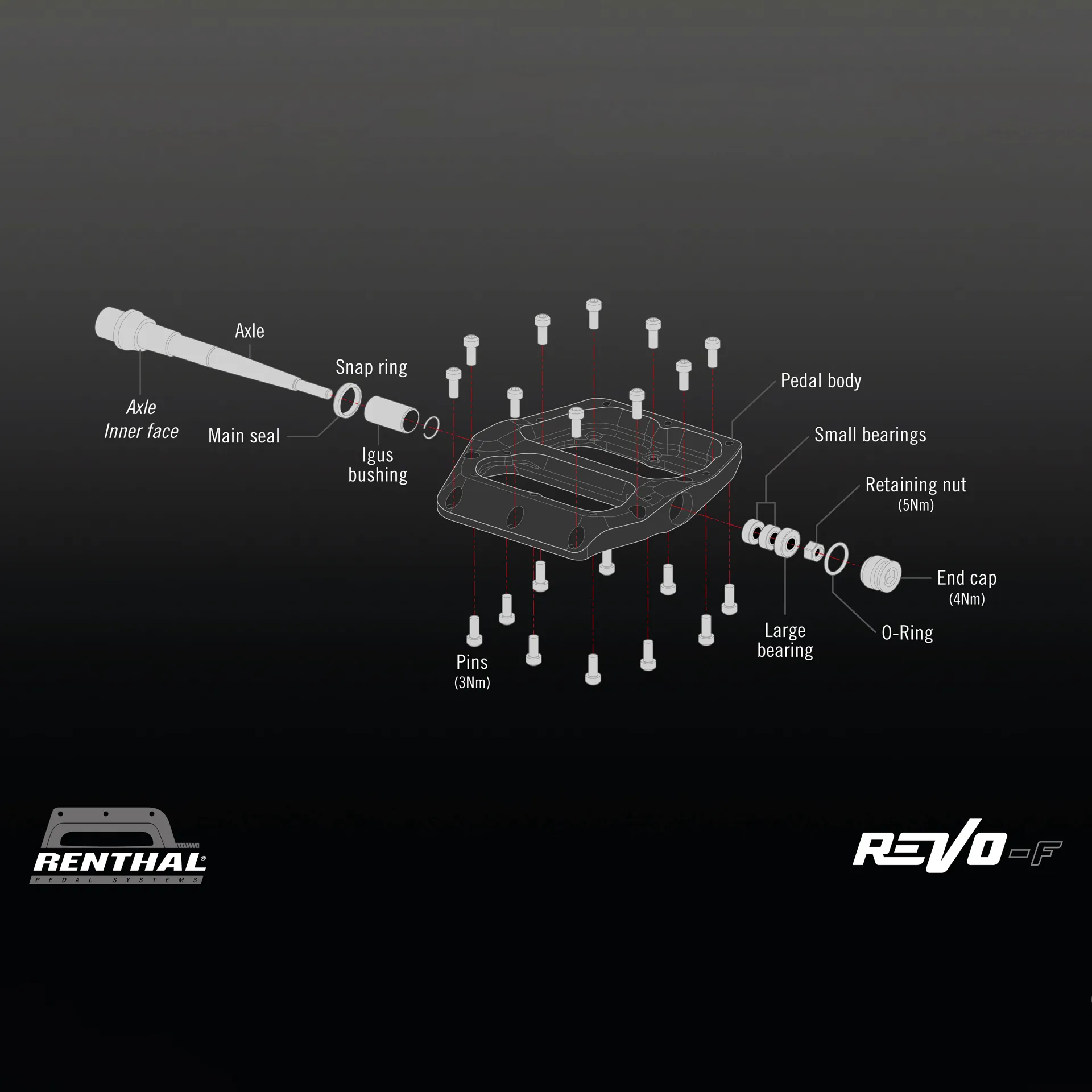

The patent pending axle system, featured in the Revo-F allows full home servicing, using standard tools, found in anyone’s toolkit. All is required is a 6mm and 8mm hex-key, a standard 8mm socket, a torque wrench and a mallet. The unique system uses the axle to both remove and re-install the bushing. The bearings are also pressed into place, using the pedal internals.
Specification:
- Concave platform. L-100mm x W-104mm
- Ten pins per side
- Adjustable pin length. 2.5mm to 5.5mm in 1mm increments
- Three outboard cartridge bearings
- Extra wide inboard IGUS bush
- Fully sealed - Inboard full contact lip-seal. Outer O-ring seal
- Home serviceable, with Renthal patent pending axle system
- Forged and CNC machined 6061 aluminium pedal body
- High grade chromoly axle
- Weight: 488g
