Using unique countersunk spacers and M5 Torx bolts OneUp has developed the only 30T oval ring that works with all 104BCD cranks.
Using unique countersunk spacers and M5 Torx bolts OneUp has developed the only 30T oval ring that works with all 104BCD cranks.
OneUp

OneUp 104 BCD Traction Oval Chainring

£53.50
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

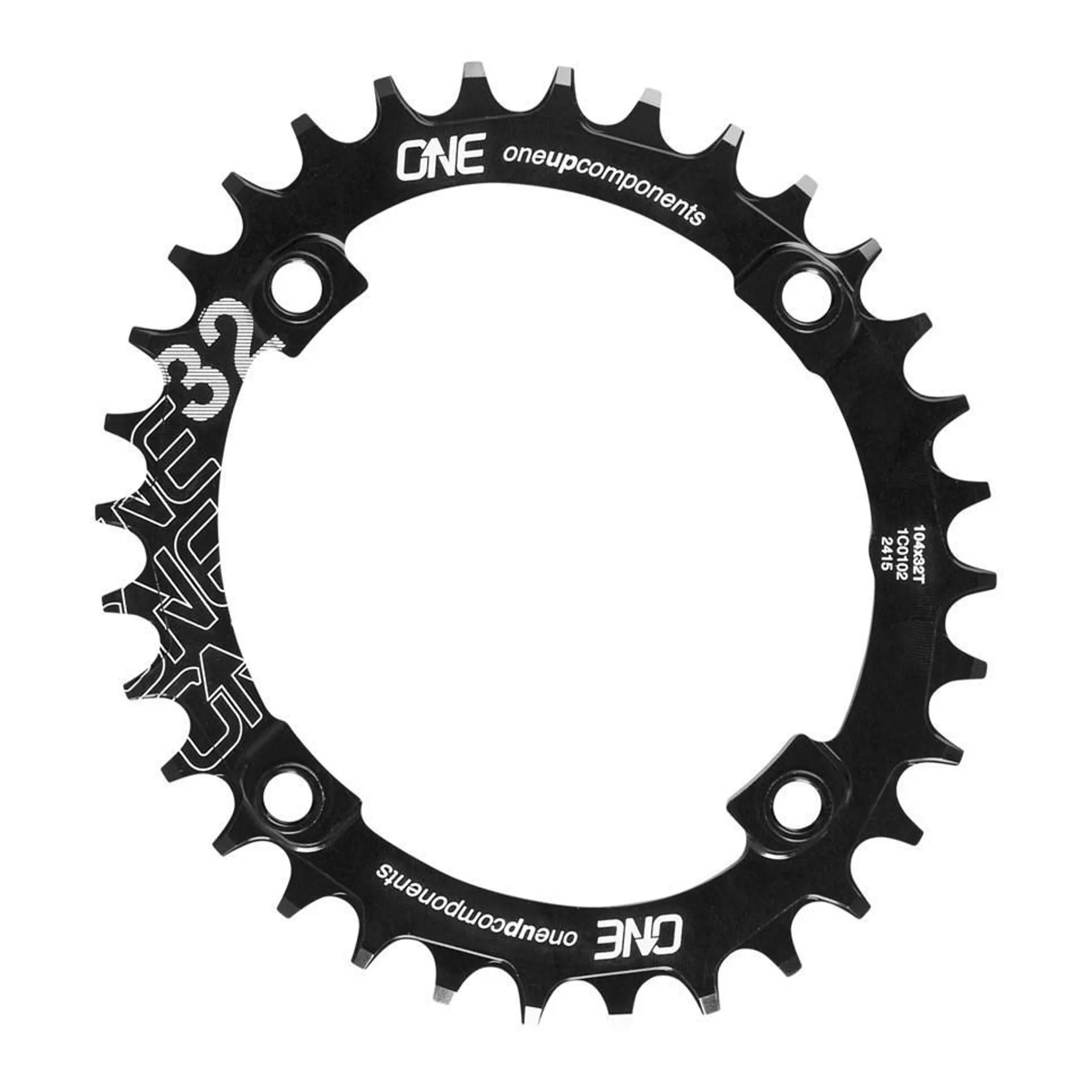

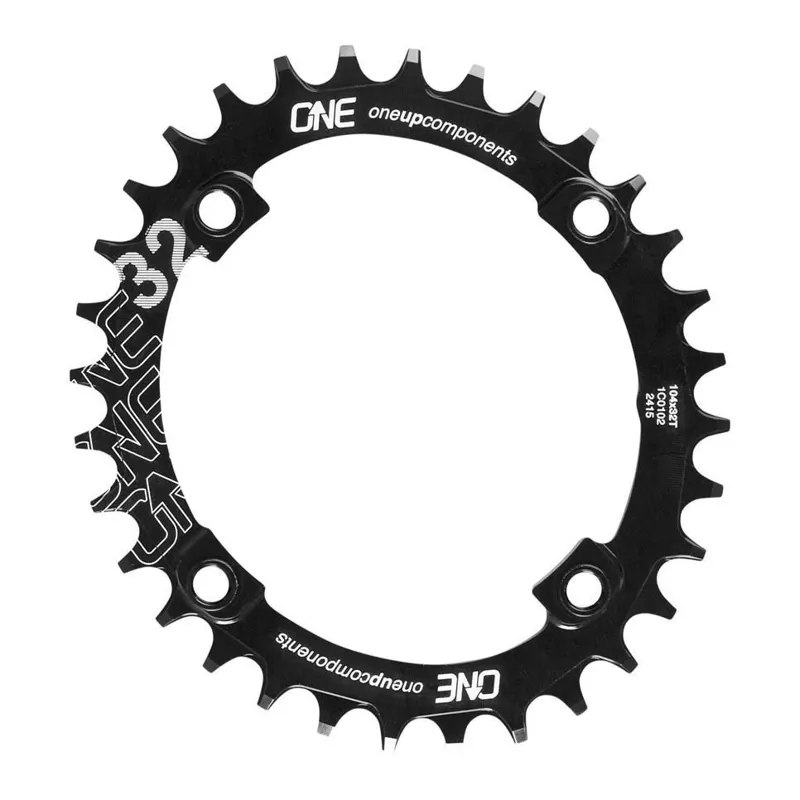

OneUp 104 BCD Traction Oval Chainring

Brand:OneUp

Code:1C0-104BCD

OneUp's Oval design has 3 main benefits; traction, traction and more traction. Forget any of the power gain claims that you've heard from the road side of the sport. For mountain, oval rings provide a more constant torque to the rear wheel thereby reducing spinouts and stalls on tough climbs.

Get ultimate traction by smoothing out the torque you deliver to your rear tire
12% ovality (32T is equal to a 30T-34T range)
115° clocking from crank arm puts the major axis in your power stroke
Narrow Wide tooth profile eliminates chain drop with the perfect chain mesh fit
Perfect chainline with built in offset. For a quieter drivetrain with improved chain wear and best drop performance
Reuse your existing 8-10mm long ring hardware. No new bolt packs required
Aggressive crud chamfers for awesome mud shedding performance and extended ring life
Reinforced Wide tooth design provides maximum ring durability when run without a bash
Made from hard wearing 7075-T6 aluminum plate
32T rings have integrated shims and M8 chainring bolt threads
30T rings have integrated shims and M5 chainring bolt threads to allow the smallest ring size possible on a 104 BCD crank. Bolts and spacers included.
Material: 7075-T6
Weight: 51g (30T), 49g (32T), 51g (34T)
Compatible with: 9, 10, 11 and 12 Speed SRAM Chains and 104 BCD cranks (not compatible with 12 Speed Shimano/Hyperglide Chains)
Installation: Align the small bump (small hole on direct mount rings) on the inner edge of the ring with your crank arm
