Built for abuse and rowdy riding, the Alpine Trail Carbon 1 uses 29" wheels and 160mm/150mm full-suspension travel for some BIG fun.
Built for abuse and rowdy riding, the Alpine Trail Carbon 1 uses 29" wheels and 160mm/150mm full-suspension travel for some BIG fun.
Marin

Marin Alpine Trail Carbon 1 Full Suspension Mountain Bike

Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

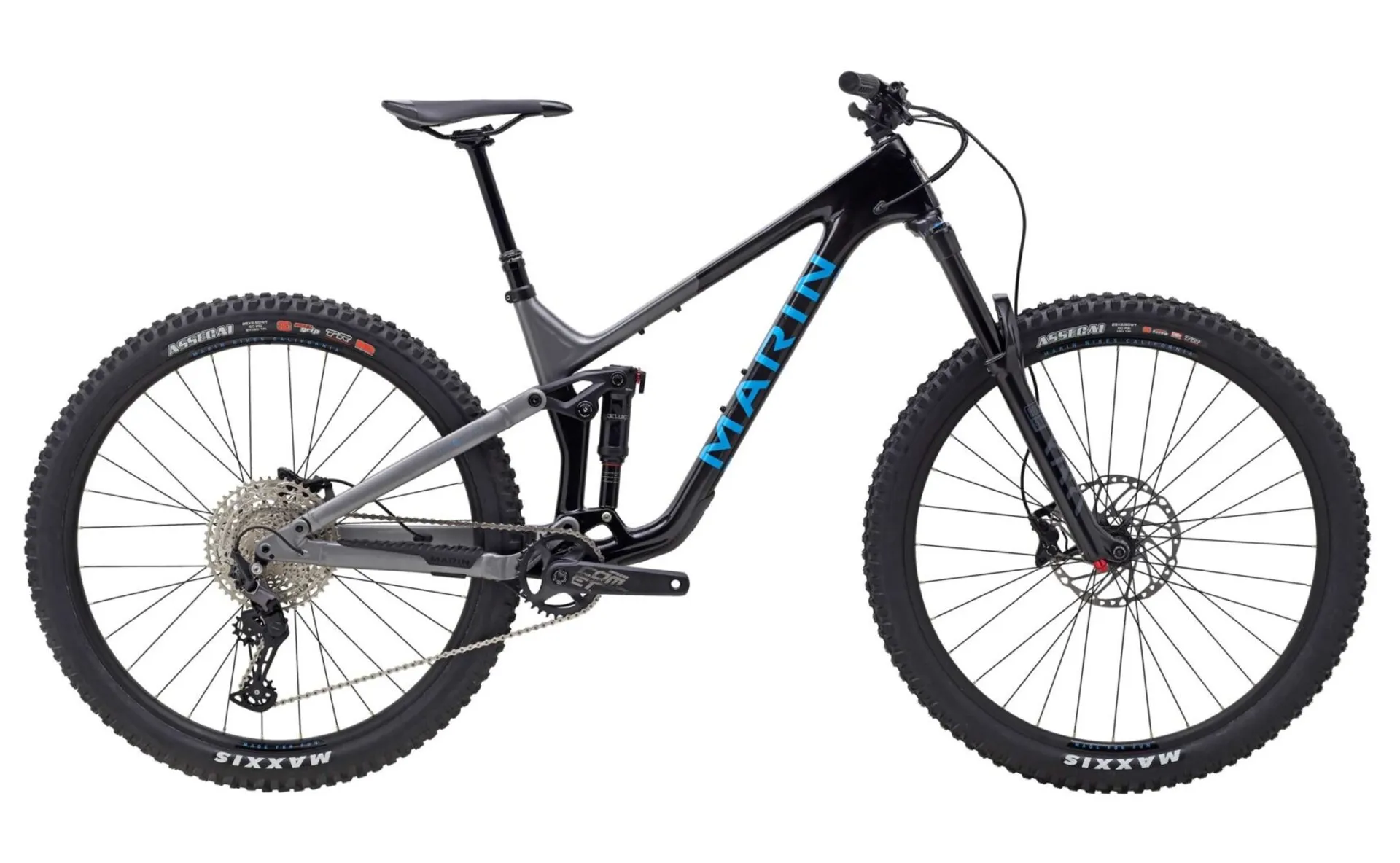

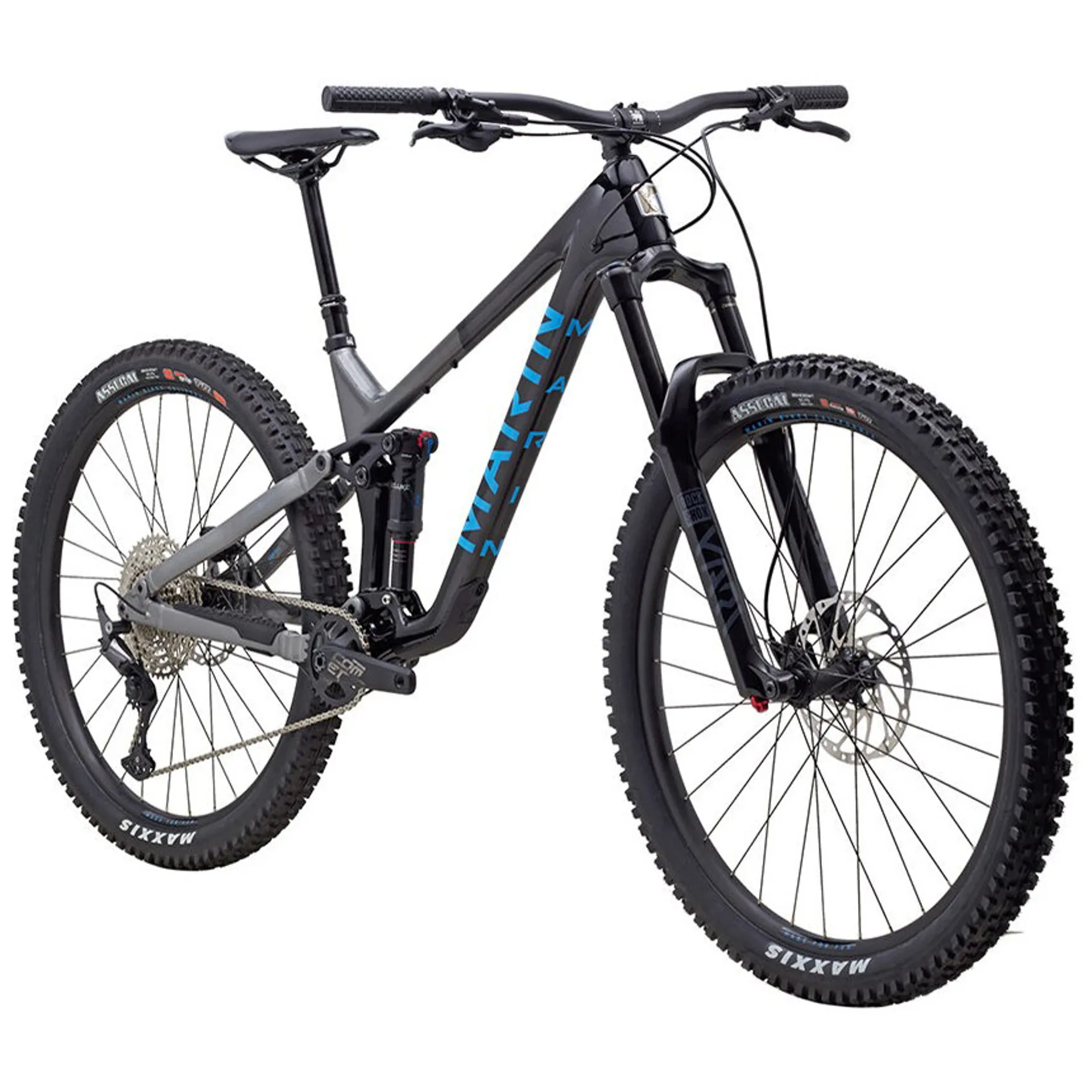

Marin Alpine Trail Carbon 1 Full Suspension Mountain Bike

Season:2023

Brand:Marin

Code:73240100

The Alpine Trail is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.

Alpine Trail Carbon 1 features high modulus carbon fiber and monocoque construction to deliver the strongest and stiffest Alpine Trail to date.

The heart of the Alpine Trail’s MultiTrac suspension is the forged one-piece rocker link. The strength and stiffness of the rocker keeps the rear of the bike tracking straight, providing smooth suspension operation under the most demanding conditions.

The stiffness of the one-piece rocker link allows for a bridgeless seatstay design, offering zero compromises on stiffness while at the same time allowing for maximum tire clearance and short chainstays.

The Alpine Trail has a slack 63.5º head tube angle paired with a steep 78º seat tube angle and long reach to provide the best modern trail bike experience. The bike lets you climb better than ever before, while giving you even more confidence when descending.

Specification:
  • Frame: All New Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Housing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
  • Fork: RockShox Yari RC, 29”, 160mm of Travel, Air Sprung, Debonair, Rebound and Compression Adjust, Fast Black Stanchions, 110x15mm Maxle Stealth, 42mm Offset
  • Shock: Rock Shox Deluxe Select + RT, Debonair Air Spring, 2 Position Compression Adjustment, Rebound Adjustment, 205x65mm, Trunnion Upper Mount, M8x25mm Lower Mount
  • Rims: Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
  • Rear Hub: Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body
  • Front Hub: Shimano HF-MT410B, 110x15mm, Centerlock
  • Tyres: Maxxis Assegai 29x2.5”, MAXX TERRA, EXO+, Tubeless Compatible / MAXX GRIP, DoubleDown, Tubeless Compatible
  • Rear derailleur: Shimano Deore, 12-Speed, SGS
  • Shifter: Shimano Deore, 12-Speed, SL6100-IR
  • Chainset: FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
  • Bottom Bracket: Mega EXO 73mm BSA
  • Chain: KMC X-12 Silver and Black
  • Cassette: Shimano, Deore M6100 12-Speed, 10-51T
  • Brakes: Shimano BR-MT420, 4-Piston Hydraulic Disc, 203mm / 180mm Rotors
  • Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
  • Stem: Marin 3D Forged Alloy, 35mm
  • Grips: Marin Single Clamp Locking
  • Headset: FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
  • Seatpost: TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
  • Saddle: Marin Speed Concept

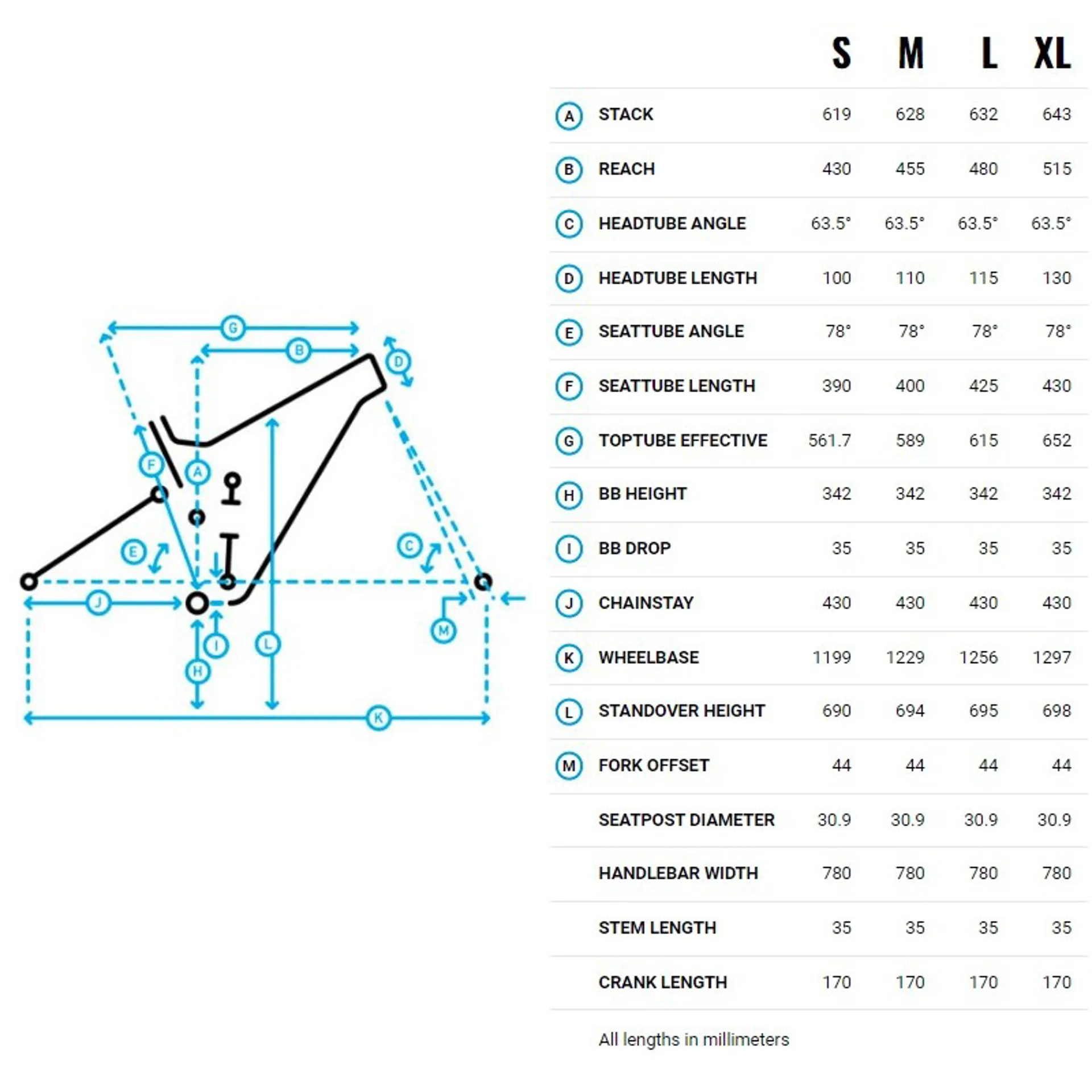

Sizing Information
