The Marin Alcatraz Jump Bike is equally at home boosting your local 6 pack, ripping up the pump track or hitting the local skate park.
The Marin Alcatraz Jump Bike is equally at home boosting your local 6 pack, ripping up the pump track or hitting the local skate park.
Marin

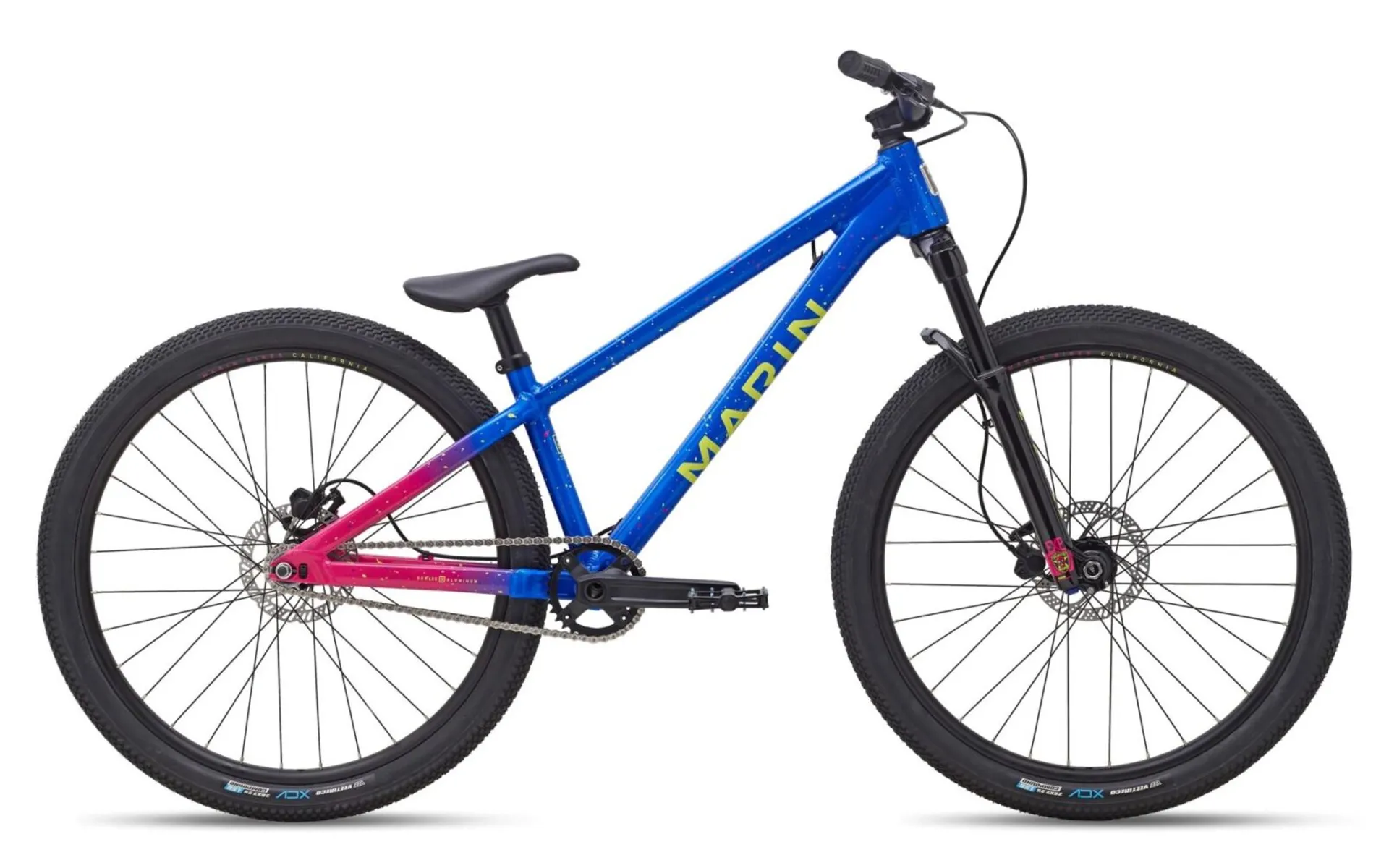

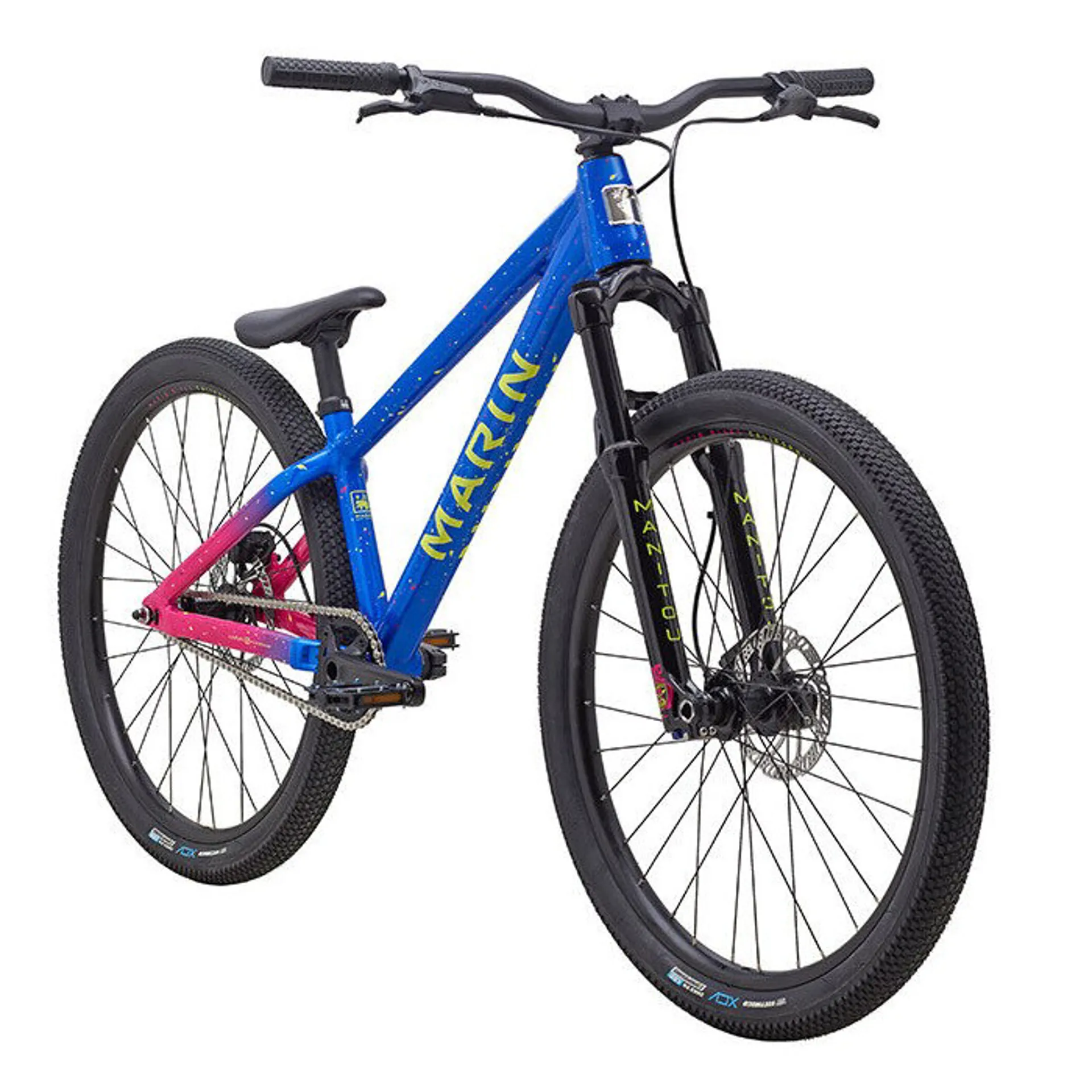

Marin 2024 Alcatraz Jump Bike

Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Marin 2024 Alcatraz Jump Bike

Season:2024

Brand:Marin

Code:73393100

The Marin Alcatraz features a 6061 Series 3 alloy frame, with a burly double butted tubesets for the best ride quality and stiffness, tapered headtubes for maximum strength on big jumps, and horizontal drop out with slotted IS disc brake tabs.

Marin have optimized the chainstay length of the Alcatraz. The shortest chainstays possible give you the ability to pop a wheelie or manual anywhere at anytime.

The Alcatraz features 135x10mm horizontal dropouts — the standard in dirt jump technology for axle and dropout strength.

100mm travel X-Fusion Slant DJ-specific fork with air spring, compression and rebound damping, and tapered alloy steerer tube.

Specification:
  • Frame: Series 3 6061 Aluminum Frame, 26” Wheels, 135x10mm Horizontal Dropouts, 73mm Threaded BB, ISCG 05 Tabs
  • Forks: Manitou Circus Expert, 26", 100mm Travel, Coil Spring, Taper Steerer Tube, 20x110mm Thru Axle
  • Rims: Marin Custom Extrusion, 27mm Inner, Pinned Joint
  • Rear Hub: Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H
  • Front Hub: Forged Alloy, 110x20mm, Disc, 32H
  • Tyres: Vee Tire, XCV 26x2.25”, LSG Compound, Wire Bead
  • Chainset: Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD
  • Bottom Bracket: External Sealed Cartridge Bearings
  • Chain: KMC HL-1
  • Sprocket: 14T Single Speed Cog
  • Brakes: Tektro HDM275 Hydraulic, 160mm Rotors
  • Handlebars: Marin Riser, 6061 Double Butted Aluminum, 38mm Rise, 750mm Width, 4º Up, 9º Back
  • Stem: Marin 3D Forged Alloy, 40mm
  • Grips: Marin Single Clamp Locking
  • Headset: FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
  • Seatpost: Marin Alloy, 30.9mm
  • Saddle: Marin DJ Saddle
  • Pedals: Alloy Platform

Specifications, pricing, and availability are subject to change without notice.
