The Bayview Trail 24" MTB is built to get kids hooked on mountain biking, with quality components and fun graphics that will last for years of use.
The Bayview Trail 24" MTB is built to get kids hooked on mountain biking, with quality components and fun graphics that will last for years of use.
Marin

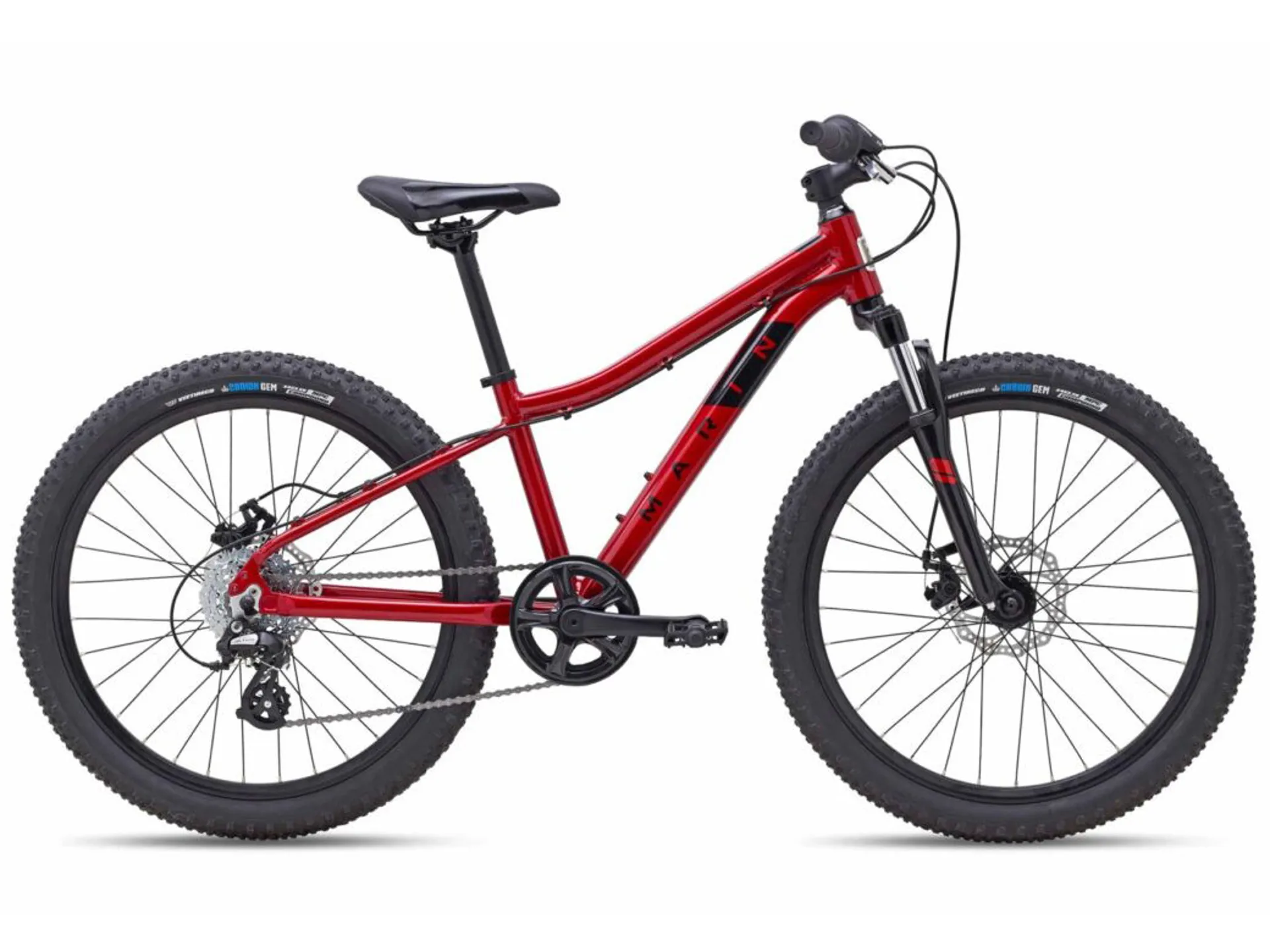

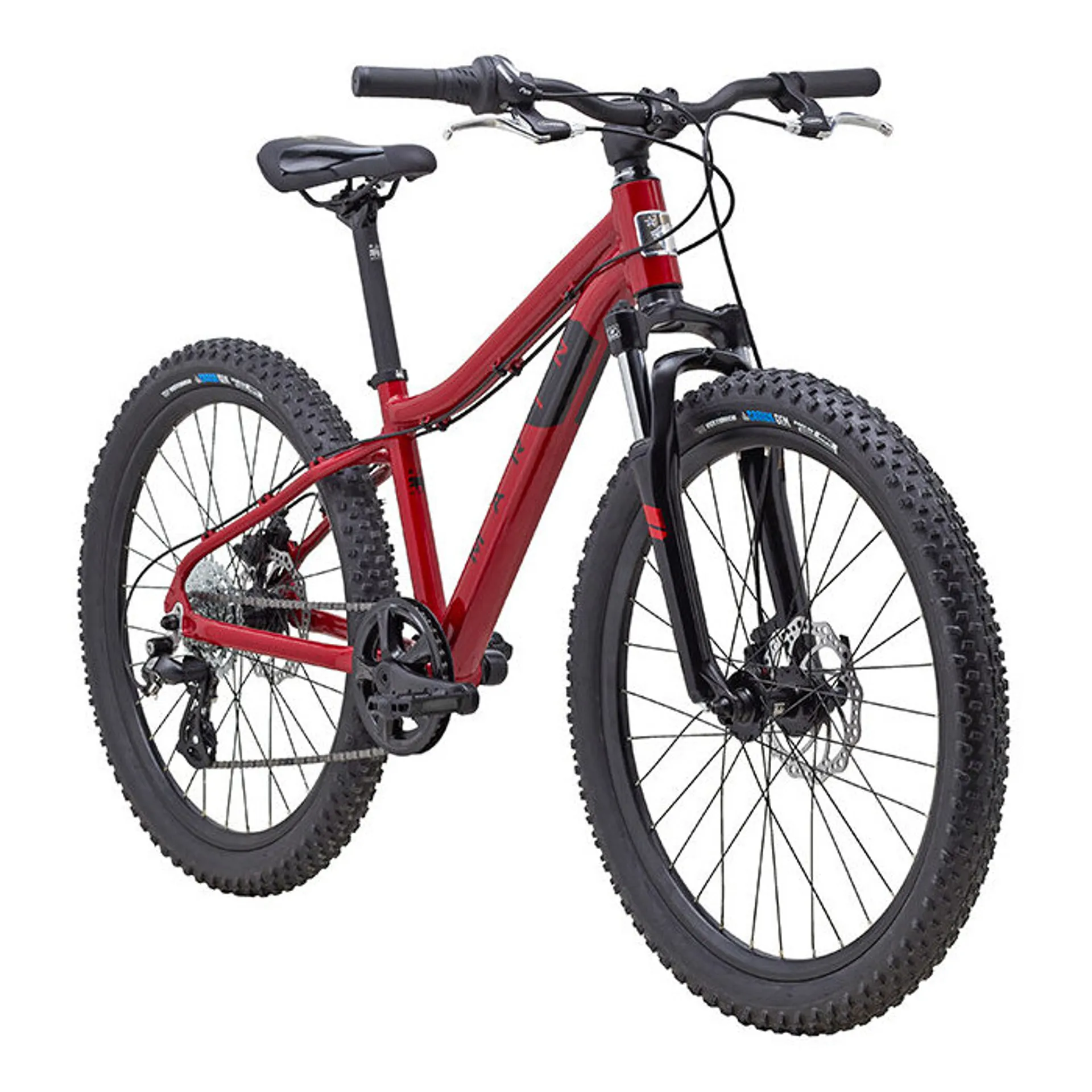

Marin 2024 Bayview Trail Red 24 inch Kids Mountain Bike

£499.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Marin 2024 Bayview Trail Red 24 inch Kids Mountain Bike

Season:2025

Brand:Marin

Code:733950001

The Bayview Trail in red is ready to show the kids the trails and take them down their first real singletrack.

Kids love the Bayview Trail 24” for the fun ride and exciting looks. Parents love them for the details that set them apart from the rest: lightweight aluminum frames, suspension forks, disc brakes, and durable component choices.

Specification:
  • Frame: Series 1 6061 Aluminum, 24” Wheels, IS Seatstay Disc Mount, 135mm Dropouts
  • Forks: SR/Suntour XCT Jr 24", Pre-Load Adjust Coil Spring, 50mm Travel
  • Wheels: Forged Aluminum Alloy 32H hubs and Double Wall Alloy rims
  • Tyres: Vee Tire Co. Crown Gem, 24”x2.25”, Wire Bead
  • Rear Derailleur: Shimano Altus, 7-Speed
  • Shifter: Shimano Revo Twist 1x7-Speed
  • Crankset: Forged Alloy, 30T, 152mm, Ring Guard
  • Bottom Bracket: Sealed Cartridge Bearings, Square Taper
  • Chain: KMC Z8
  • Cassette: SunRace, 7-Speed, 11-34T
  • Brakes: Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
  • Brake LeversL: Kids Specific Short Reach Alloy Lever
  • Handlebar: Marin Riser, 30mm Rise, 590mm Width
  • Stem: Marin Alloy, 60mm
  • Grips: Marin Dual Density
  • Headset: FSA, Threaded
  • Seatpost: Marin Alloy, 27.2mm
  • Saddle: Marin Kids MTB
  • Pedals: Kids Specific Nylon Pedal

Specifications, pricing, and availability are subject to change without notice.
Technical Information
  • FRAME
    Series 1 6061 Aluminum, 24” Wheels, IS Seatstay Disc Mount, 135mm Dropouts
  • FRONT SUSPENSION
    SR Suntour XCT Jr 24", Pre-Load Adjust Coil Spring, 50mm Travel
  • RIMS
    Marin, Double Wall Alloy
  • HUB, REAR
    Forged Aluminum Alloy, 32H
  • HUB, FRONT
    Forged Aluminum Alloy, 32H
  • SPOKE, NIPPLES
    14g Stainless Steel
  • TIRES
    Vee Tire Crown Gem, 24”x2.25”, Wire Bead
  • DERAILLEUR, REAR
    Shimano Altus, 7-Speed
  • DERAILLEUR, FRONT
    -
  • SHIFT LEVER
    Shimano Revo Twist 1x7-Speed
  • CRANKSET
    Forged Alloy, 30T, 152mm, Ring Guard
  • BOTTOM BRACKET
    Sealed Cartridge Bearings, Square Taper
  • CHAIN
    KMC Z8
  • CASSETTE
    Sunrace, 7-Speed, 11-34T
  • BRAKE, FRONT
    Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
  • BRAKE, REAR
    Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
  • BRAKE LEVERS
    Kids Specific Short Reach Alloy Lever
  • HANDLEBAR
    Marin Riser, 30mm Rise, 590mm Width
  • STEM
    Marin Alloy, 60mm
  • GRIPS
    Marin Dual Density
  • HEADSET
    FSA, Threaded
  • SEATPOST
    Marin Alloy, 27.2mm
  • SADDLE
    Marin Kids MTB
  • PEDALS
    Kids Specific Nylon Pedal
Sizing Information
