The 2022 Lapieerre Overvolt HT 5.6 Full Suspension e-MTB has Rockshox 35 Gold RL suspension forks and Bosch Performance line CX Gen4 electric motor.
The 2022 Lapieerre Overvolt HT 5.6 Full Suspension e-MTB has Rockshox 35 Gold RL suspension forks and Bosch Performance line CX Gen4 electric motor.
Lapierre

Lapierre Overvolt AM 5.6 Full Suspension Electric Mountain Bike

£4,299.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

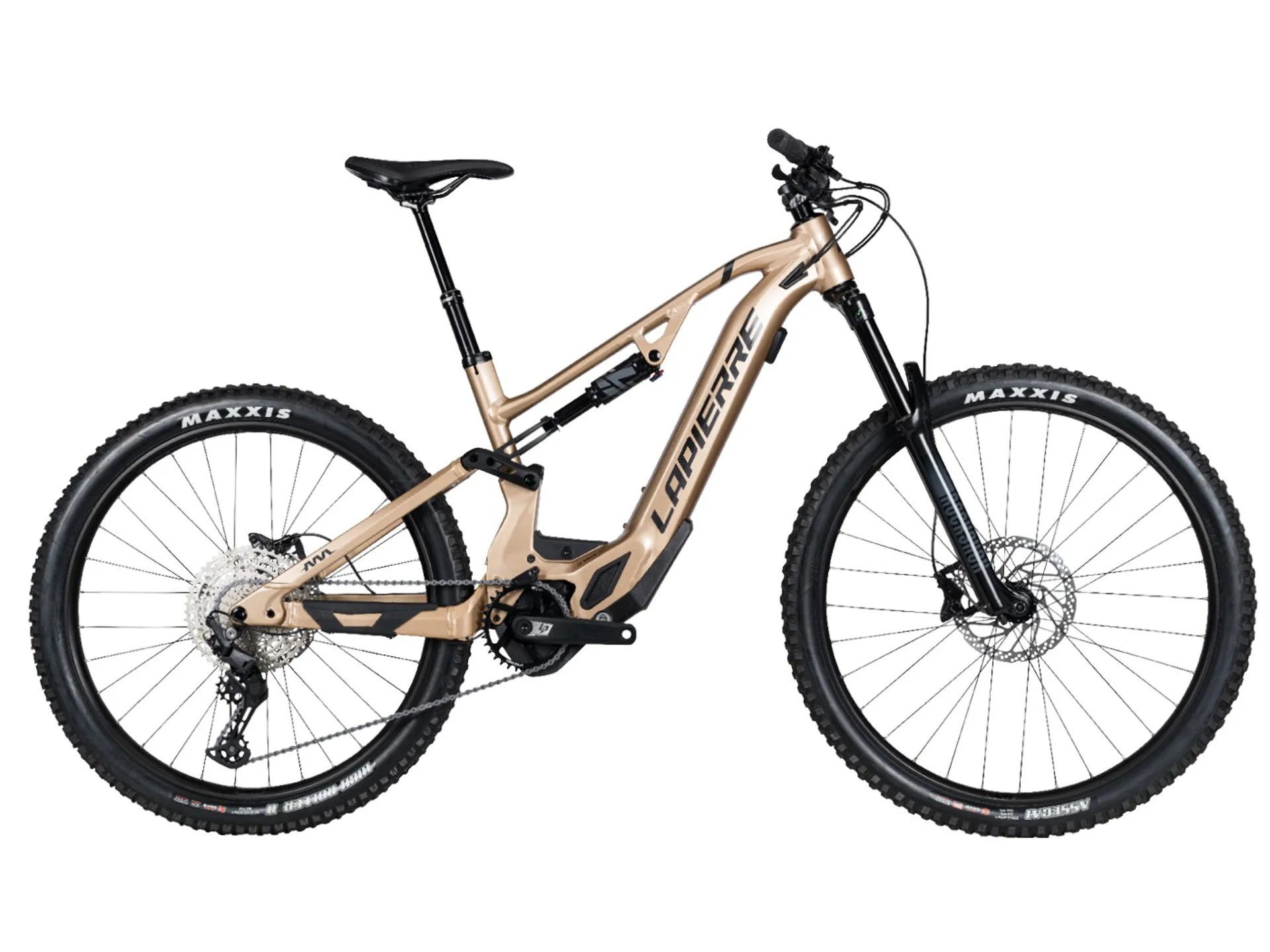

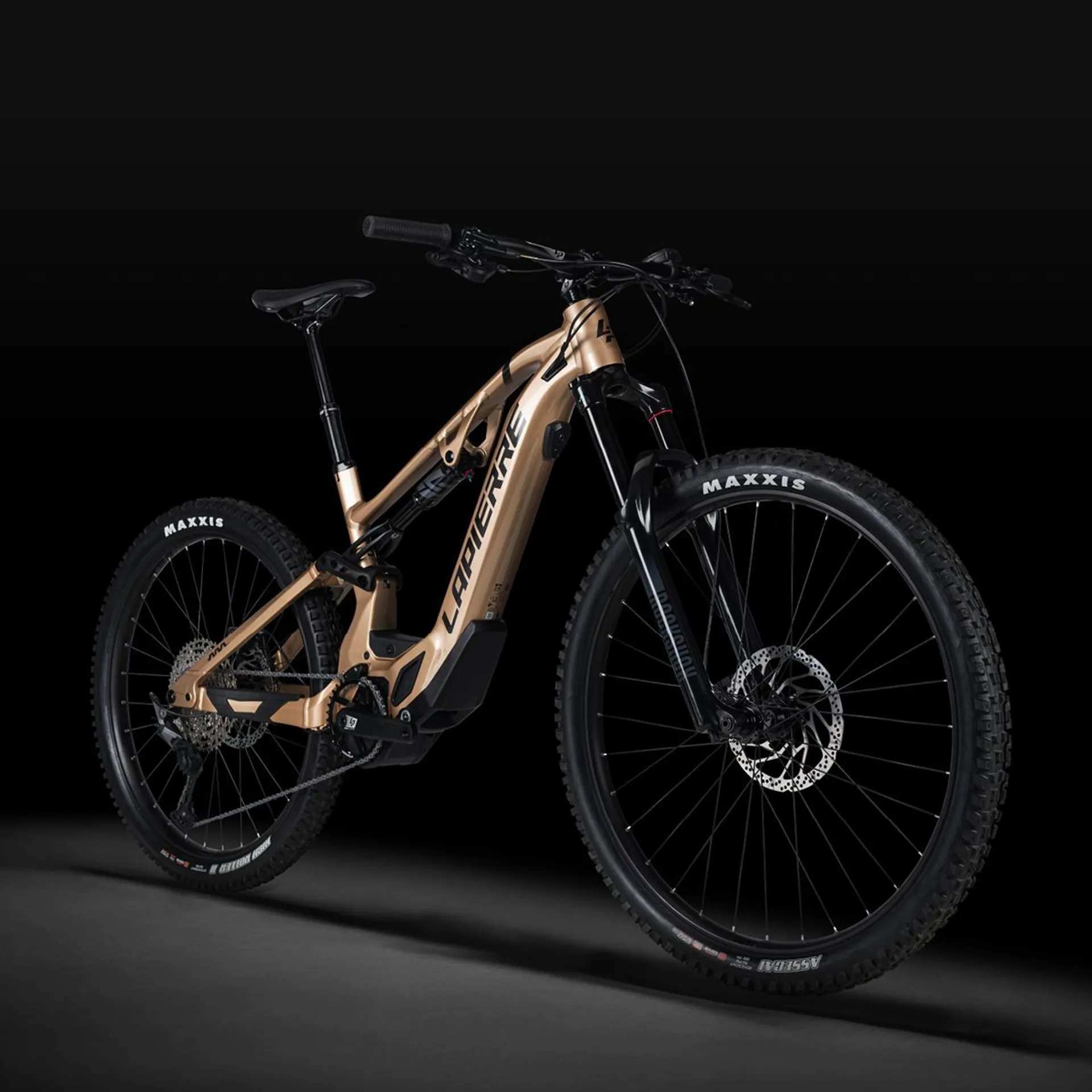

Lapierre Overvolt AM 5.6 Full Suspension Electric Mountain Bike

Season:2022

Brand:Lapierre

Code:LONNA

The Overvolt AM is a true mountain all-rounder: as capable climbing as it is descending. This electric assist mountain bike has been developed with focus on centralising and lowering its centre of gravity, to face the most technical terrain. The mixed wheel sizes give the best of both worlds. The result being a delight to ride with unlimited pleasure.

Specification:
  • Battery Watts per Hour: 625Wh
  • Display: Purion
  • Motor: Bosch Performance Line CX Gen4 625Wh PowerTube Purion
  • Frame: Overvolt FS 160mm travel integrated Bosch Supreme 5 alloy (UDH Dropout)
  • Forks: Rockshox 35 Gold Rl 15x110MM 29″ 160MM 44MM Offset
  • Shock: Lapierre Shock Trunnion 205x60MM
  • Front Wheel Hub: Lapierre DA210, boost 15x110, 32H Center Lock
  • Rear Wheel Hub: Lapierre DA210, 4 sealed bearings, boost 12x148, 32H Center Lock
  • Rims: Lapierre eAM+ 32H, front: 622x30 rear: 584x35 Tubeless Ready
  • Tyres: Maxxis, front: 29x2.5 WT Assegai, 60TPI, EXO+, 3C MaxxGrip, TR / rear: 27.5x2.8 Minion DHR II 60TPI, EXO+, 3C Maxxterra, TR
  • Brakes: Shimano M4100 4-pot with SM-RT30 203mm rotors
  • Handlebars: Lapierre alloy 6061DB, Width: 780mm, Rise: 15mm (S/M), Width: 780mm, Rise: 30mm (L/XL), Ø: 31.8mm
  • Headset: FSA NO.55R/57E, Anod black 1-1/8"-1.5"
  • Pedals: VP VPE-527
  • Stem: Lapierre CNC Ø: 31.8mm L: 40mm(S,M) 45mm(L,XL)
  • Grips: Lapierre Grips S/M: Small Diameter L/XL: Large Diameter
  • Saddle: Selle Royal VIVO
  • Seat Post: Lapierre Dropper by JD Ø: 31.6mm Travel 100mm(S) 130mm(M) 150mm (L, XL) + Shimano Lever
  • Chain: KMC E11 Turbo 11s
  • Crankset: New Lapierre Overvolt Isis 160 (S/M) / 165mm (L/XL) + E13 Steel Ring 34T
  • Rear Derailleur: Shimano Deore RD-M5100, 11s
  • Cassette: Shimano Deore CS-M5100 11-51T 11s
  • Shift Lever: Shimano Deore SL-M5100 11s

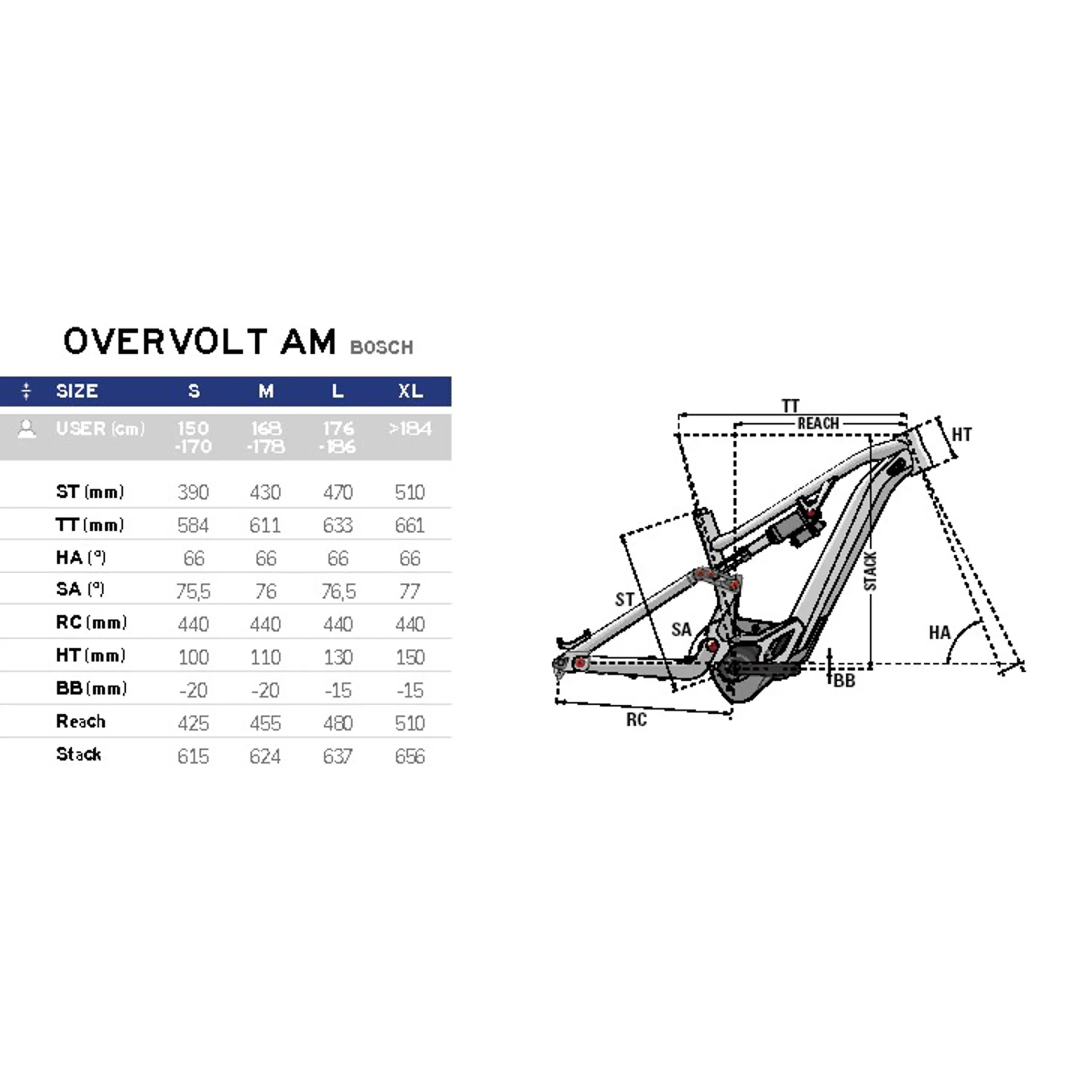

Sizing Information
