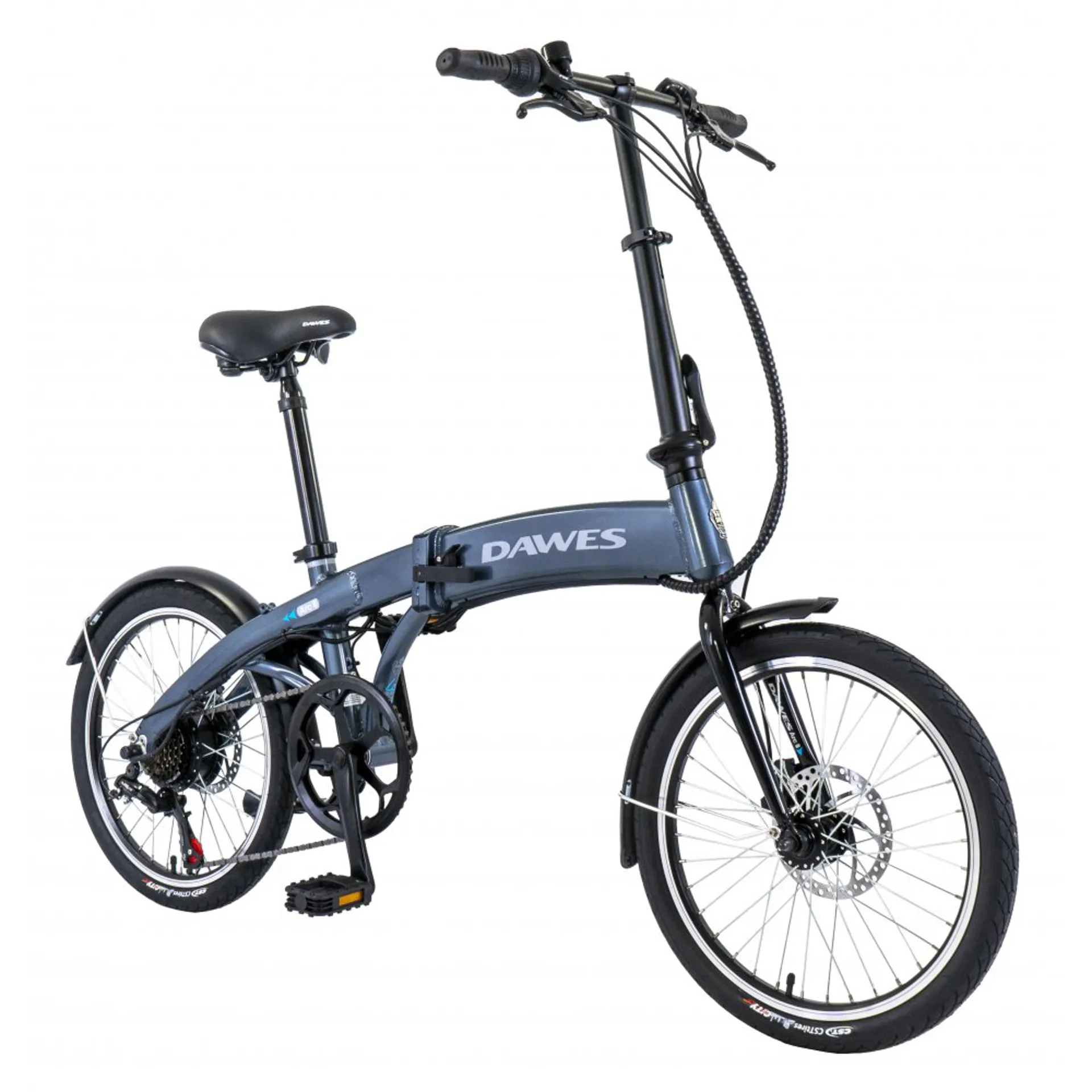

You may have guessed from the name, but the new Dawes ARC II is an improved version of their previously very popular ARC folding electric bike. Not only does an electric bike offer the convenience of allowing you to get further, faster, but this model also neatly folds away to be stored at home, at the office or on public transport.

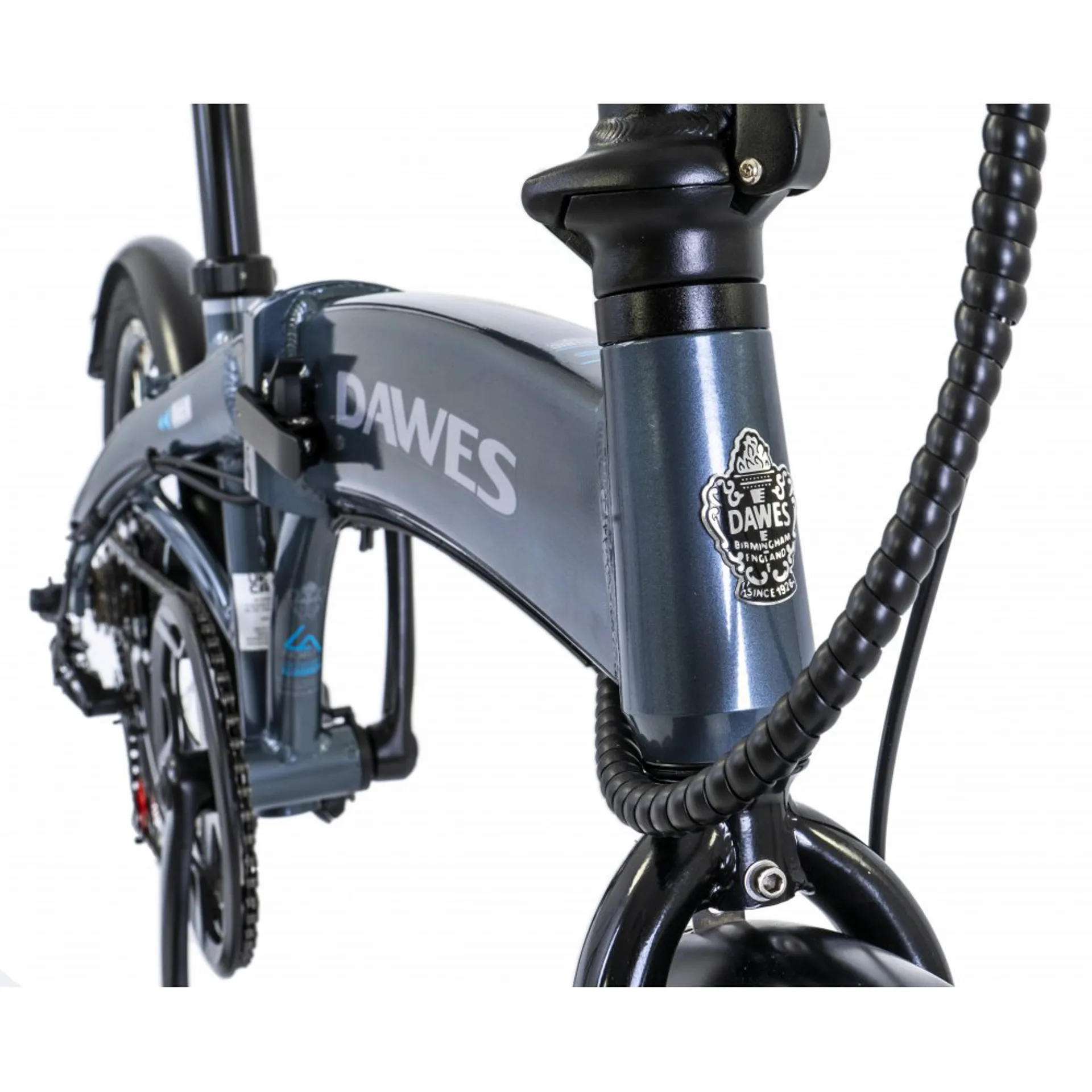

The frame has received the greatest improvement with its more sleek looking design, and the battery is discretely hidden away inside the tubing. Not only does it power the 250W BAFANG rear motor, but it also has a port for charging mobile devices on the move too! On a full charge you’ll have no issues riding approximately 30-35km which should be more than enough for most commuters and leisure cyclists alike. And, as with all our e-bikes, you can charge the battery on or off the bike.
Dawes find the 20" wheel size offers the perfect blend of comfort, stability and speed whilst also being small enough to fold down to an easy to manage size. All of this, coupled with a fully adjustable, telescopic handlebar stem, 550mm seat post, powerful mechanical disc brakes and a Shimano 6 speed drivetrain.
Specification:
- Maximum Range: 22 miles / 35km
- Recharge Time: 5 hours
- Maximum Assisted Speed: 15.5mph / 25kmh
- Motor: Bafang 36V 250W motor
- Motor Type: Rear hub motor
- Motor Torque: 32nm
- Battery: 238Wh (36V 6.6Ah)
- Battery Type: Integrated with USB charging function
- Display: Handlebar mounted LED display, 3 level power assist & walk assist
- Speed Sensor: 12 point pedal sensor
- Frame: Alloy folding frame with integrated battery
- Frame Size: 13" (Folding)
- Fork: Hi-tensile steel
- Headset: 1" threaded
- Handlebar: Flat, 600mm wide
- Stem: Alloy telescopic folding stem
- Grips: Black ergo comfort grips
- Gear Shifters: Shimano Revoshift, 6 speed
- Rear Derailleur: Shimano RD-TZ500, 6 speed
- Chain: KMC Z7
- Cassette/Freewheel: Shimano 6 speed freewheel, 14-28T
- Chainset: 170mm crank, 52T chainring
- Number of Gears: 6
- Bottom Bracket: Cartidge type, 122.5mm
- Pedals: Folding pedals for improved storage
- Brakes: Mechanical disc brakes, 160mm rotors
- Brake Levers: Alloy lever including motor cut-off switch
- Front Hub: 36 hole, Alloy nutted
- Rear Hub: Bafang 36V 250W motor
- Rims: 20" double wall alloy rims with CNC sidewall
- Tyres: 20 x 1.75" city tyres
- Saddle: Comfort saddle
- Seat Post: 34mm x 55mm
- Mudguards: Full length, black steel
- Kickstand: Alloy centre mount
- Weight: 19.5kg
